Large Diameter Casing

Piling Casing

As a manufacturer of large diameter casings we can supply up to 914 mm diameter x 3m effective lengths.

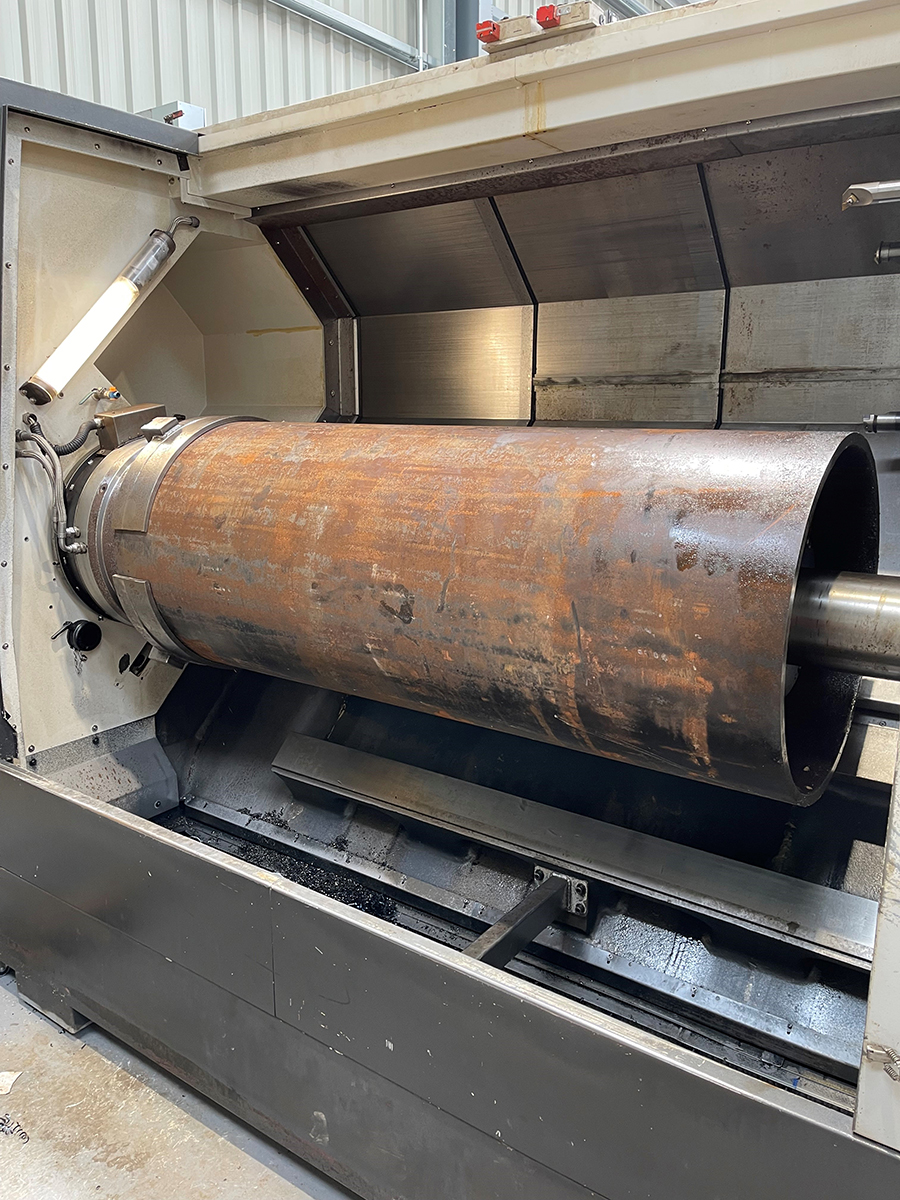

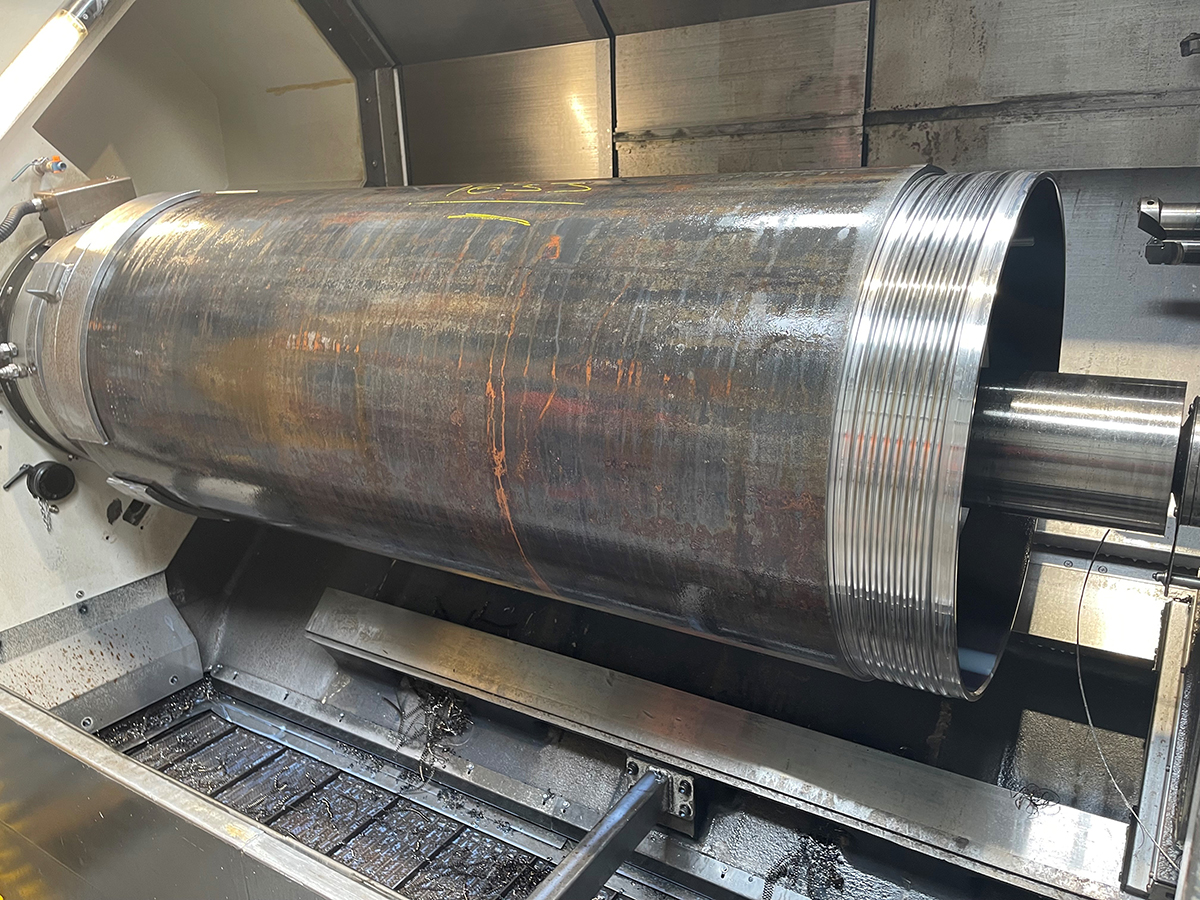

Photos: Cutting a thread on 508mm casing, and finished casing with holes drilled in box end for safe handling.

Our standard range of rotary casing is as follows but contact our team to discuss options further:

Outside Diameter (mm)
457
473
483
508
559
610
660
762
813
Inside Diameter (mm)
432
448
457
476
530
574
622
721
777
Wall Thickness
12.7
12.7
13
16
14.5
18
19
20.5
18
Thread Starts
3
3
3
3
3
3
3
3
3
Handling LH
*
*
*
*
*
*
*
*
*
Handling RH
*
*
*
*
*
*
*
*
*
BS 4019
Micropile
